Getting started with MCP servers and OAuth

Maintained in GETTING-STARTED-MCP.md. Generated from the same repository revision as this site.

By the end of this page the agent will be calling tools on a remote MCP server that your organization hosts, through Prisma AIRS AI Gateway, signed in with OAuth as you. You add the server, sign in once in your browser, and then prove the connection with a real, read-only tool call.

The running example is incident-tools, a self-hosted incident-management MCP server that exposes list_incidents and get_incident. Your server and its tools will differ; the steps do not.

Guide	Use it when
Workspace API key	You want the fewest moving parts, or this is your first setup.
Company SSO	Your administrator has set up Keycloak or Entra sign-in for the gateway.
MCP servers with OAuth (this page)	Inference works and you want to connect a remote tool server.

Start here only once inference works. Either getting started guide gets you there, and this page works the same with a workspace key or company SSO.

How MCP sign-in works

Your MCP server does not face the harness directly. Your administrator publishes it through AI Gateway, which gives it a gateway MCP URL. The harness connects to that URL, and the gateway decides who may reach the server and which tools they may call.

Three things are worth knowing before you start, because each explains a step that would otherwise look redundant.

MCP has its own credential. Your inference key or SSO token is never sent to an MCP server. The MCP sign-in produces a separate token, for a separate audience, with separate scopes. A working inference sign-in therefore tells you nothing about tool access.

The harness never talks to your server directly. It only knows the gateway MCP URL. The gateway holds its own credential for your server, applies workspace grants and policy, and records every call. Pointing the harness at the server's own URL would skip all of that, so the harness does not do it, even as a fallback.

Four states, not one. A connection can be saved but not signed in, signed in with no tools discovered, discovered but not authorized for a particular tool, or fully working. Each has a different fix, which is why Part 2 checks them in that order and ends with a real tool call.

The harness handles the OAuth details for you. It reads the gateway's published OAuth metadata, registers itself as a public client (by dynamic client registration, unless the gateway supports client metadata documents), and requests these scopes:

Scope	Allows
mcp:servers:read	Reading the server's details
mcp:tools:list	Discovering the tools you may use
mcp:tools:call	Calling those tools

Scopes let the harness ask. The gateway's grant for your account decides what it actually receives. The gateway is also the authorization server: the sign-in link points at the gateway, which sends you on to company sign-in.

Before you start

From your administrator:

Value	Example	Notes
Gateway MCP URL	https://gateway-mcp.example.com/tools-dev/mcp	The gateway-facing URL for your server, usually ending in /mcp. Not your server's own URL, and not the inference /v1 URL.
Tools you are granted	list_incidents, get_incident	So you can tell a missing grant from a broken connection.

On the gateway side, your administrator must already have:

1. Deployed the MCP server, with its own backend credential limited to the access it needs.
2. Published it as an MCP integration in your gateway workspace, including the gateway's OAuth client for the server if the server requires one.
3. Granted your account access to the integration and to the tools you need.

MCP authorization covers that setup. Signing in to the gateway does not grant any of it.

You also need a desktop browser, or a second device if you work over SSH, and the same working credential store that inference uses.

Part 1: Set up

1. Check the MCP URL before you connect

The most common mistake is the wrong URL: the server's own address, the inference URL, or a path without /mcp. The gateway MCP URL answers an unauthenticated request with 401 and tells clients where its OAuth metadata is, so you can check it without signing in:

curl -sS -o /dev/null -D - -X POST https://gateway-mcp.example.com/tools-dev/mcp \
  | grep -i -E '^HTTP|^www-authenticate'

Expected output, in the shape the MCP authorization standard defines:

HTTP/2 401
www-authenticate: Bearer resource_metadata="https://gateway-mcp.example.com/.well-known/oauth-protected-resource/tools-dev/mcp"

You see	Meaning
401 with resource_metadata	The URL is an OAuth-protected MCP endpoint. Continue.
404	The path is wrong. Check the integration's full URL, including /mcp.
200 or a web page	This is not the gateway MCP endpoint, or it does not use OAuth. Ask your administrator for the gateway MCP URL.
A TLS or connection error	Network path, DNS or certificate problem. The harness will fail the same way.

2. Open AIRS and add the server

Start a session in the environment you use for inference, then open the MCP manager:

airs

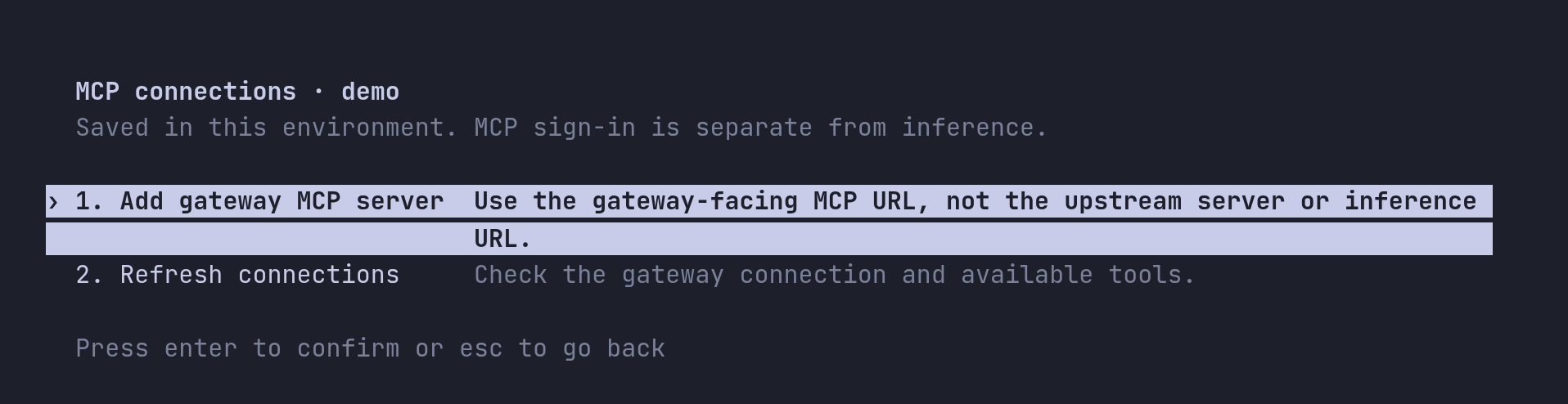

Enter /mcp. The manager lists this environment's connections. With none yet, it offers Add gateway MCP server.

Choose Add gateway MCP server and answer two prompts:

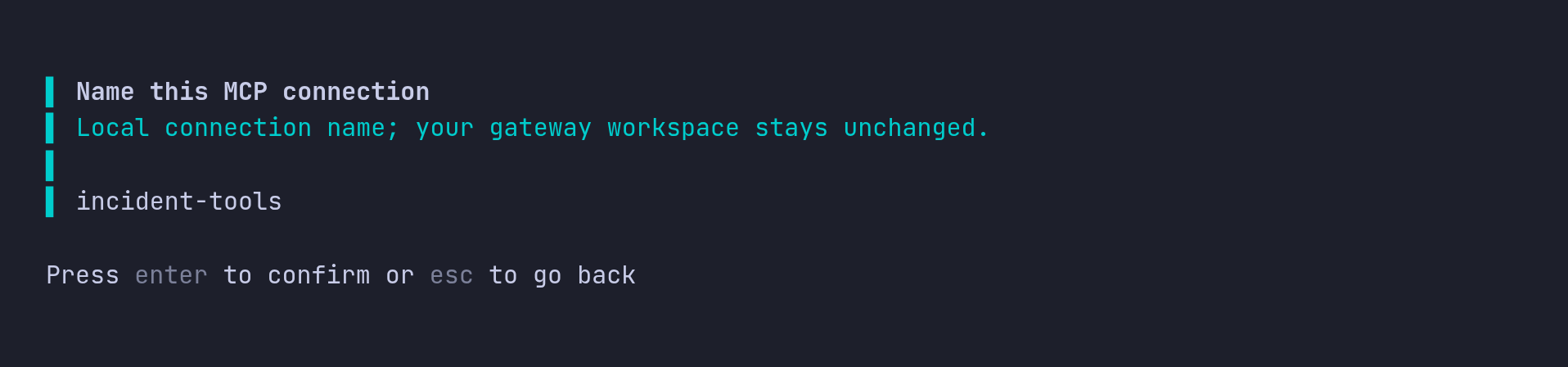

1. Name this MCP connection. A local name, such as incident-tools. It is how the connection appears in /mcp and in the agent's tool list. It does not select anything at the gateway. Use up to 64 letters, digits, hyphens or underscores.

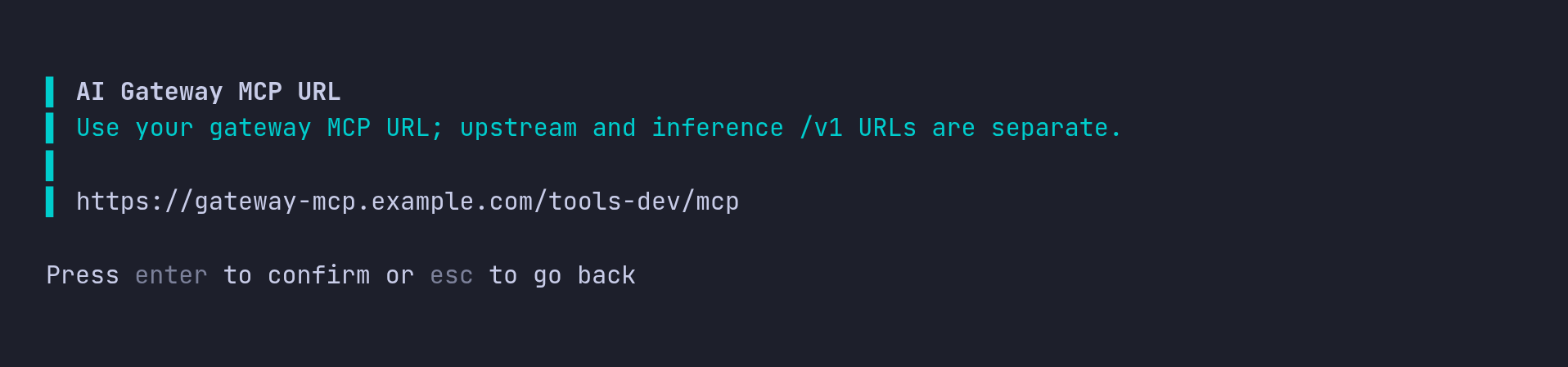

2. AI Gateway MCP URL. The URL you checked in step 1. It must be HTTPS, with no credentials, query string or fragment.



AIRS saves the connection, reads the gateway's OAuth metadata, registers itself, and opens the sign-in dialog. The manager always requests the three scopes listed in How MCP sign-in works. If your administrator gave you different scope names, add the server from the shell instead.

3. Sign in

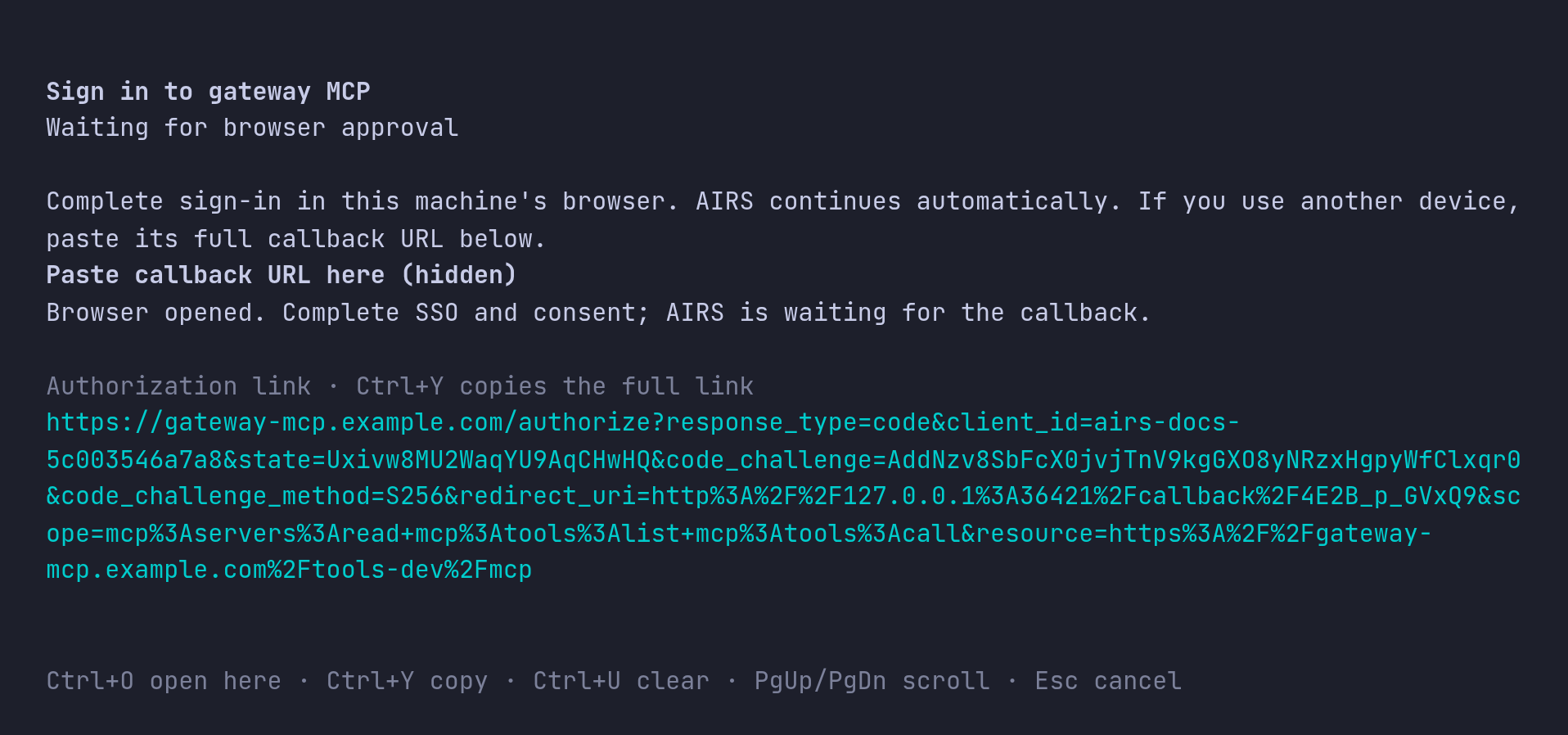

Sign in to gateway MCP shows the authorization link and waits for your browser to return.

On your own desktop, AIRS opens the browser for you. Sign in with your company account, approve any consent the gateway asks for, and AIRS continues by itself. If no browser opened, press Ctrl+O to try again.

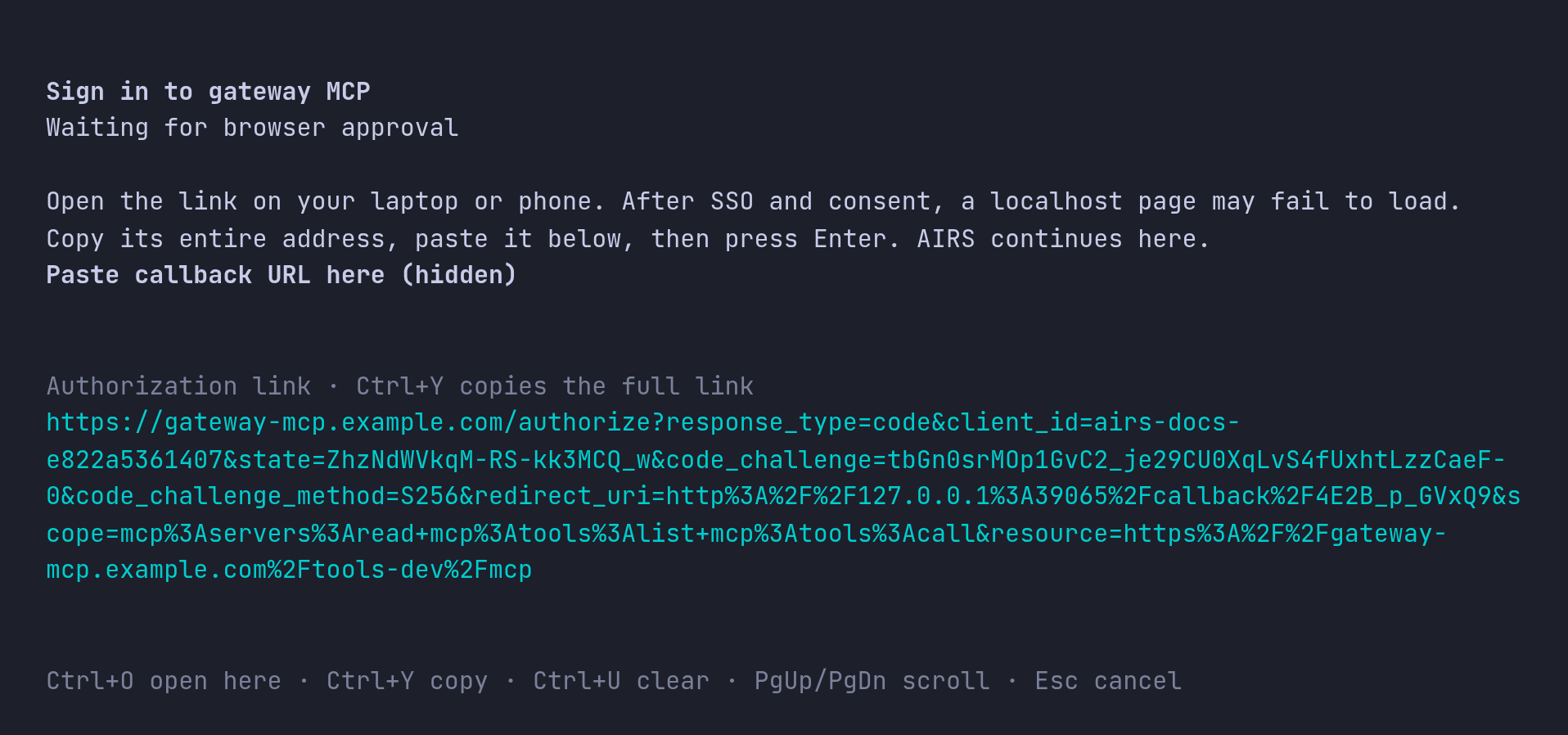

Over SSH or without a browser, the dialog tells you to open the link on another device. Press Ctrl+Y to copy the full link and open it on your laptop or phone. Prefer Ctrl+Y to selecting the wrapped link on screen: selecting a link that wraps across lines can pick up line breaks or lose part of it, and sign-in then fails with MCP authorization did not complete. After you sign in, the browser tries to load a http://127.0.0.1:…/callback page, which fails because the harness is on the other machine. That is expected. Copy the full address from the browser's address bar, paste it into the hidden Paste callback URL here field and press Enter.

Paste the callback only into that field. It is a one-time authorization code, so keep it out of the conversation and support tickets. Esc cancels; the connection stays saved, and you can sign in later from /mcp.

Choose the same company account you use for inference. If you use a workspace key for inference, choose the account that holds the MCP grant. The link in the dialog shows what is being requested: your registered client, PKCE, a 127.0.0.1 callback (/callback/ followed by an ID for this attempt), the three scopes and the MCP server as the resource. If the consent page names the client Codex, that is expected: it is the name the harness registers under, inherited from the open-source client it is built on.

4. Start a new conversation

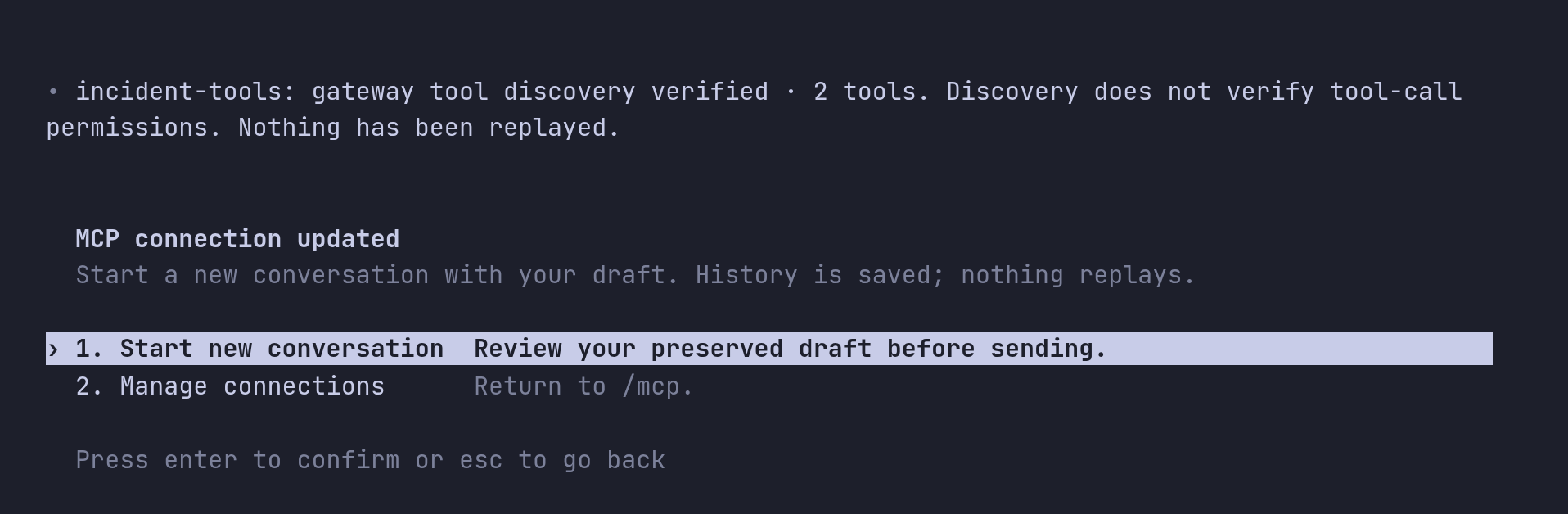

AIRS shows three progress stages: Completing MCP sign-in…, Saving MCP credential… and Connecting and discovering MCP tools…. When discovery succeeds, it reports incident-tools: gateway tool discovery verified · 2 tools and offers a new conversation. As that line also says, discovery does not verify that you may call the tools; step 7 does.

Choose Start new conversation. A conversation's tool list is fixed when it starts, so new tools appear only in a new one. Your previous conversation stays saved, your unsent draft carries over, and nothing is sent or replayed for you.

Set up from the shell instead

The same connection can be added from the shell, which is useful for scripts or when you prefer to see each step's output:

airs mcp add incident-tools \
  --url https://gateway-mcp.example.com/tools-dev/mcp \
  --scopes mcp:servers:read,mcp:tools:list,mcp:tools:call

It prints Added global MCP server 'incident-tools'. and Detected OAuth support. Starting OAuth flow…, then opens the browser and prints Successfully logged in. when you finish. If sign-in did not finish, run it on its own. --no-browser prints the link and a hidden Callback URL prompt for the pasted address, for SSH:

airs mcp login incident-tools --no-browser

Pass --scopes exactly as your administrator specifies. Some gateways publish different scope names, and the harness keeps whatever you pass for later sign-ins.

Part 2: Validate

Each check below confirms one of the four states, in order. Stop at the first one that fails; the later ones depend on it.

5. Validate the saved connection

From the shell:

airs mcp list

Name            Url                                            Bearer Token Env Var  Status   Auth
incident-tools  https://gateway-mcp.example.com/tools-dev/mcp  -                     enabled  OAuth

Column	Expect	If not
Url	The gateway MCP URL from step 1	Remove the connection and add it again with the right URL.
Status	enabled	A disabled connection is skipped at startup.
Auth	OAuth	Not logged in means sign-in did not finish. Select the connection in /mcp and choose Sign in. Do not add it again. Unknown means the harness could not read the credential store or reach the gateway's OAuth metadata: unlock the credential store, repeat step 1 and run /doctor. After airs logout, run airs login first.

OAuth means a credential is saved. It does not yet show that the gateway accepts it; the next step does.

6. Validate sign-in and tool discovery

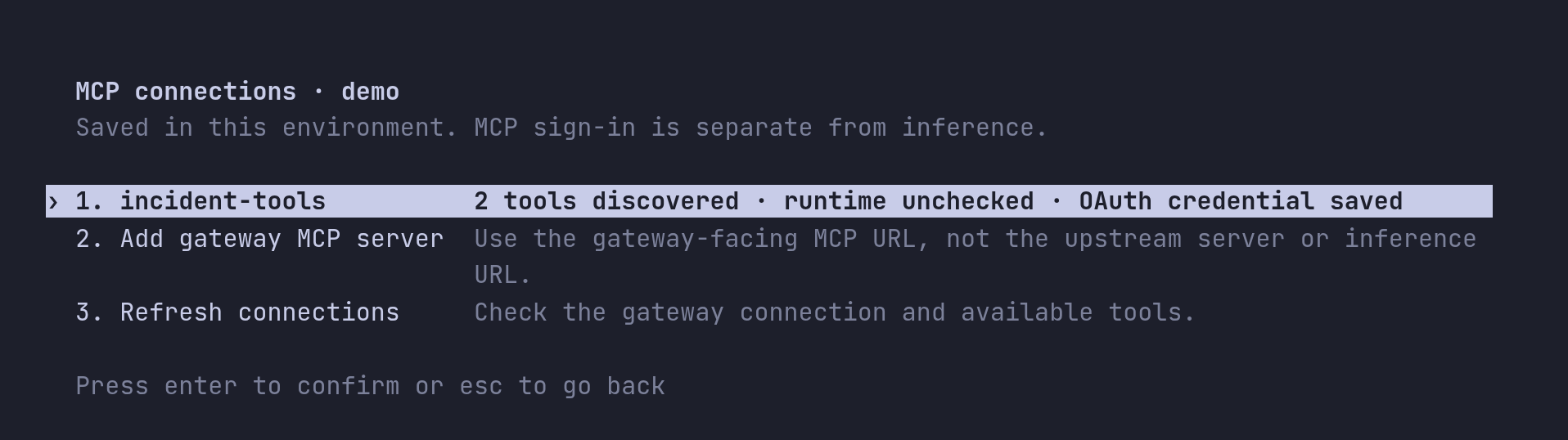

In a session, enter /mcp again. Opening it checks discovery afresh, and the connection shows its tool count and that an OAuth credential is saved. runtime unchecked is expected and stays there: this view checks discovery, not the connection inside your running conversation.

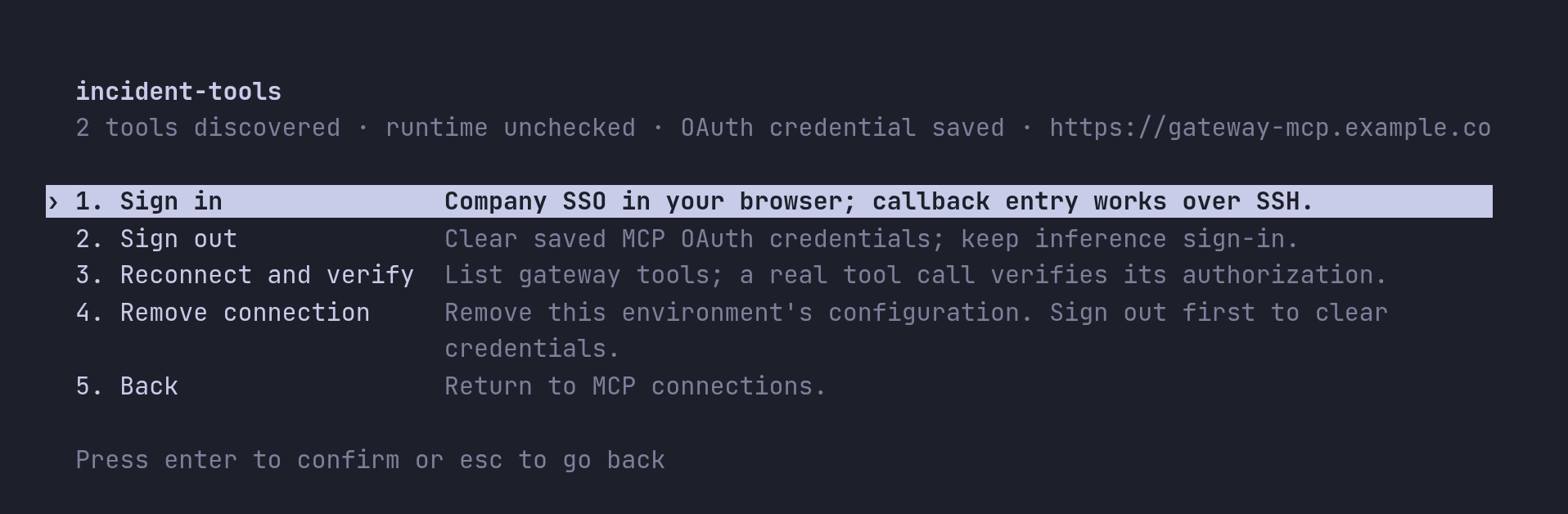

Select the connection to see its actions:

Choose Reconnect and verify. It connects to the gateway with the saved token, initializes the server and lists its tools again, without calling any of them. Success means the gateway accepts your MCP token and your grant lets you see tools. To list the tool names in a session, enter /mcp verbose.

If the list is missing a tool you expect, the gateway grant does not include it. That is a gateway change, not something to fix in the harness.

7. Validate a real tool call

Discovery proves you can see tools. Only a call proves you may use them, and only the transcript proves a call happened: a model can write a plausible answer without calling anything. In the new conversation, ask for a read-only operation:

Use the incident-tools MCP connection to list up to five active incidents. Show their numbers, short descriptions and priorities. Do not create or update any records.

Check the transcript, not just the answer. A successful call looks like this, with your own arguments and result:

• Called incident-tools.list_incidents({"state":"active","limit":5})
  └ INC0010042 · Payment API latency · P2 …

A failed call shows └ Error: and the reason in the same place. In detail:

• There is a tool call to list_incidents on incident-tools.
• The call returned a result. An empty list is a valid result if there are no active incidents.
• If the agent asks for approval to run the tool, approve it; that is the harness's local approval policy, separate from the gateway's authorization.

A tool error that says you are not authorized means discovery works but the grant for that operation is missing. Give your administrator the tool name and the time; the gateway logs show the decision.

8. Validate that the sign-in persists

Exit AIRS, start it again, and repeat the read-only request in a new conversation. It should work without a browser, because the token, and its refresh token if the gateway issued one, are in your credential store. If AIRS asks you to sign in again right away, the credential was not saved; check your Keychain or keyring and run /doctor.

Administrators should also test a user without the grant and confirm the gateway denies the call. A check that only ever succeeds does not show that the grant is doing anything.

Troubleshoot

AIRS reports MCP failures in the manager with a recovery step. The first sentence names the stage:

Message begins	Stage	What to check
The MCP endpoint is invalid.	URL	Use the full HTTPS gateway MCP URL, without credentials or query parameters.
MCP authorization discovery failed.	Discovery	The URL is not the gateway MCP endpoint, or its OAuth metadata is not published. Repeat step 1.
The MCP authorization endpoint could not be reached.	Network	DNS, TLS and network access to the gateway and the sign-in service.
MCP authorization did not complete.	Sign-in	Retry Sign in. If it fails again, the administrator checks the gateway OAuth client, scopes and redirect settings.
MCP sign-in was cancelled.	Sign-in	Choose Sign in from /mcp when ready.
MCP sign-in expired.	Sign-in	The link was not used in time. Choose Sign in again for a fresh link.
(The) MCP operation timed out	Sign-in or discovery	Retry from /mcp. If sign-in was pending, choose Sign in for a fresh link.
MCP configuration could not be read or saved.	Local configuration	Run /doctor and check access to the environment's files.
The MCP credential operation failed.	Storage	Unlock the Keychain or keyring, run /doctor, then retry.
… denied this MCP request (HTTP 403).	Authorization	Your account's workspace and MCP grants.
A gateway policy blocked this MCP request (HTTP 446).	Policy	The trace in the gateway logs names the policy.
Unavailable, rate-limited or no specific cause	Gateway or sign-in service	Wait, then run /doctor and refresh /mcp before retrying.

When a message ends with The connection was saved; it may still need sign-in. Do not add it again., select the existing connection in /mcp and choose Sign in. Adding a second one with the same name is refused.

Renew, sign out and remove

Task	In a session	From the shell
Sign in again when a token can no longer be renewed (AIRS also offers this by itself when a tool call needs it)	/mcp → the connection → Sign in, or /signin	airs mcp login incident-tools
Check discovery again	/mcp → the connection → Reconnect and verify	—
Sign out, keeping the connection	/mcp → the connection → Sign out	airs mcp logout incident-tools
Remove the connection	/mcp → the connection → Remove connection	airs mcp remove incident-tools

Sign out before you remove a connection if you also want its saved token cleared from this machine; removing only deletes the configuration. Neither signs you out of inference. The reverse is different: airs logout stops all MCP use in the environment until you sign in again, but keeps the MCP tokens, so connections work again after airs login without a new browser sign-in. None of these revokes access at the gateway. To end access completely, your administrator removes your grant.

Two details matter when you keep several environments:

• Connections belong to one environment. Add the server again in each environment that needs it.
• The saved MCP token is keyed by connection name and URL for your operating system user. Two environments with the same name and URL share it, so signing out in one signs out both. Use different names if you need separate MCP identities.

Environments created before native MCP storage

New environments save MCP tokens in the operating system's credential store. An environment from an earlier preview may still use its original storage mode, which upgrades keep. To check, run airs env show, open config.toml in its state_directory, and look for this top-level setting, above any [table] headers:

mcp_oauth_credentials_store = "keyring"

If it is missing or different and you want native storage, first sign out of every MCP connection in /mcp while the old mode is still set. Then exit AIRS, set the value, reopen the environment and sign in to each connection again. Changing the setting does not move or delete existing tokens, which is why the sign-out comes first. Do not copy token files.

Commands in this guide

Command	What it does	Changes anything?	Sends a request?
curl -X POST <MCP URL>	Checks the URL is an OAuth-protected MCP endpoint	No	To the gateway, unauthenticated
/mcp → Add gateway MCP server	Saves the connection, registers and signs in	Saves configuration and token	Discovery, registration, sign-in and tool discovery
airs mcp add NAME --url URL --scopes …	The same from the shell	Saves configuration and token	Discovery, registration and sign-in; no tool discovery (check with step 6)
airs mcp login NAME [--no-browser]	Signs in to a saved connection	Saves the token	Sign-in
airs mcp list	Lists connections, their status and auth state	No	Only for a connection with no saved token: unauthenticated OAuth discovery
/mcp → Reconnect and verify	Initializes the server and lists tools	No	Tool discovery, no tool call
airs mcp logout NAME	Deletes the saved MCP token	Deletes the token	No
airs mcp remove NAME	Deletes the connection's configuration	Deletes configuration	No
airs env show	Shows the environment's state directory	No	No

What to do next

• Understand the gateway side of MCP authorization, and how an administrator publishes a server, in MCP authorization.
• See every place a credential is used, and which one covers what, in Architecture.
• Run the full acceptance checks for a deployment in Acceptance validation.
