Getting started with company SSO

Maintained in GETTING-STARTED-SSO.md. Generated from the same repository revision as this site.

By the end of this page you will have signed the harness into Prisma AIRS AI Gateway as yourself, using your company identity provider instead of a shared key. You enter the public settings your administrator gives you, sign in once in your browser, and then confirm that the token the harness received carries what the gateway needs.

The examples use Keycloak as the company issuer. If your company signs in with Microsoft Entra ID, the steps are the same: Entra sits behind Keycloak, and you choose it on the Keycloak sign-in page. Signing in with Microsoft Entra ID explains why.

Guide	Use it when
Workspace API key	You want the fewest moving parts, or this is your first setup.
Company SSO (this page)	Your administrator has set up Keycloak or Entra sign-in for the gateway.
MCP servers with OAuth	Inference works and you want to connect a remote tool server.

This page starts after installation. If airs --version does not work yet, do step 1 of the workspace API key guide first.

How SSO sign-in works

The harness is a public OIDC client: it has no client secret, so it protects the sign-in with PKCE instead. Your browser signs in to Keycloak, Keycloak returns the harness an access token (a signed JWT), and the harness sends that token to the gateway with every request.

The token is checked twice, in two places, and each check can fail without the other:

• The harness checks that the token was issued for this gateway. Before it saves anything, it verifies the signature against Keycloak's published keys and checks that the issuer (iss) is exactly the URL you entered, the audience (aud) includes the audience you entered, and the authorized party (azp) is your client ID. It also requires an RS256 signature and checks the ID token, whose sub must match the access token's. Any failure stops sign-in before any credential is saved. A wrong azp is named in the error; the other access-token failures all report access JWT verification failed, most often because the audience is missing.
• The gateway checks that you are allowed. It validates the same token again, then reads the claims your administrator mapped into it: the inference scope, your gateway workspace and your role. A token can pass the harness's check and still be refused here, which is why sign-in ends with a real request.

The harness asks Keycloak only for the openid scope. It never requests the audience or the gateway claims itself; Keycloak adds them because your administrator attached them to the harness client. That is why a missing claim is fixed in Keycloak, never in the harness. The harness then sends the access token to the gateway as a bearer credential, and renews it with the refresh token.

Before you start

Your administrator gives you four public values. None of them is a secret, and there is no client secret for you to enter.

Setting	Example	What it is
Gateway URL	https://gateway.example.com	Where inference goes. Enter it without /v1.
Issuer URL	https://sso.example.com/realms/example-corp	Your Keycloak realm. No trailing slash.
Client ID	ai-gateway-agent	The public client the harness signs in as.
Audience	stack-ai-inference	The resource the token must be issued for.

The examples are not a live tenant. Copy your administrator's values exactly: the harness compares them character for character with what Keycloak publishes.

You also need:

• An account that may invoke models. Signing in proves who you are; it does not grant model access. Your administrator adds you to the group that carries the inference role and enrolls you in the gateway workspace.
• A desktop browser, or a second device for signing in over SSH.
• A working credential store. The harness keeps your SSO credential in the macOS Keychain or, on Linux, an unlocked Secret Service keyring. It checks the store before opening the browser, and there is no plaintext fallback.
• curl and jq for the check in step 1. Without jq, drop the | jq … part and read the issuer field in the raw JSON.

Part 1: Set up

1. Check the issuer before you sign in

Most SSO failures come from an issuer URL that is wrong or differs by one character. You can check it without signing in by reading the realm's discovery document, which is public:

issuer=https://sso.example.com/realms/example-corp
curl -fsS "$issuer/.well-known/openid-configuration" \
  | jq '{issuer, pkce: .code_challenge_methods_supported, device: .device_authorization_endpoint}'

Expected output:

{
  "issuer": "https://sso.example.com/realms/example-corp",
  "pkce": ["plain", "S256"],
  "device": "https://sso.example.com/realms/example-corp/protocol/openid-connect/auth/device"
}

Field	Must be	If not
issuer	Identical to the URL you will enter, with no trailing /	Use the value printed here. A URL that reaches this document but differs from issuer fails sign-in with discovery issuer mismatch.
pkce	A list that includes S256	Ask your administrator to enable PKCE S256.
device	A URL, if you will sign in over SSH	Device sign-in is not offered by this realm. Use a desktop browser.

If curl fails, the harness will fail the same way, because it makes the same request: a 404 means the realm name or path is wrong (issuer discovery rejected), and a connection error means the network path (issuer discovery unavailable). Fix that first.

2. Create an environment and choose company SSO

An environment is a local profile: where to connect, which credential to use and where your conversations are kept. Create one for SSO:

airs env create work-sso

It becomes your default environment, so every command in this guide uses it without naming it. The first screens are the same as in the workspace API key guide: keep or change the name, enter the gateway URL without /v1, and choose Create environment and sign in. Running airs on a fresh installation opens the same screens.

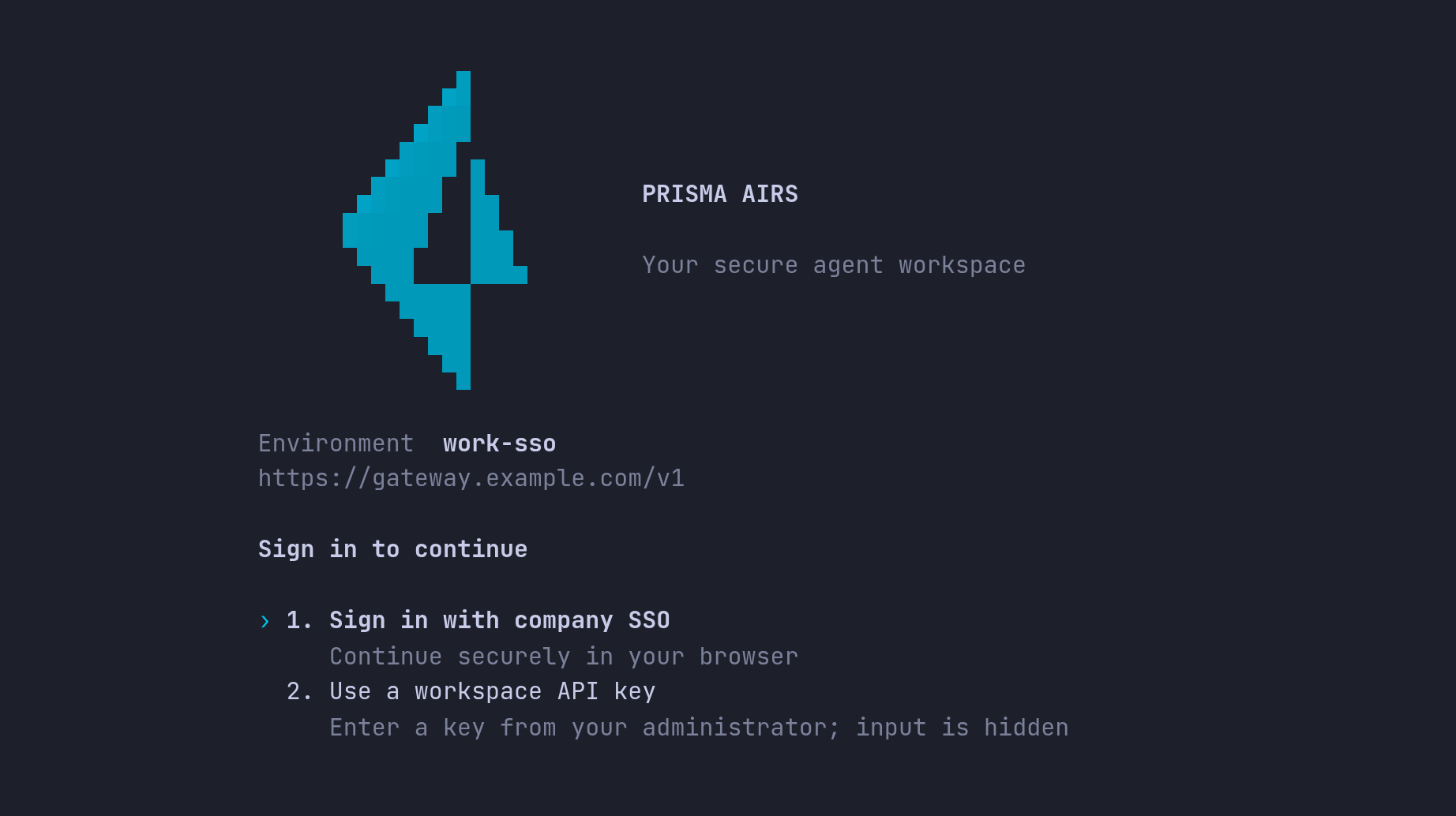

On Sign in to continue, choose Sign in with company SSO. It is already selected, so press Enter.

3. Enter the issuer, client ID and audience

AIRS asks for the three identity settings one at a time, on screens titled Connect your environment:

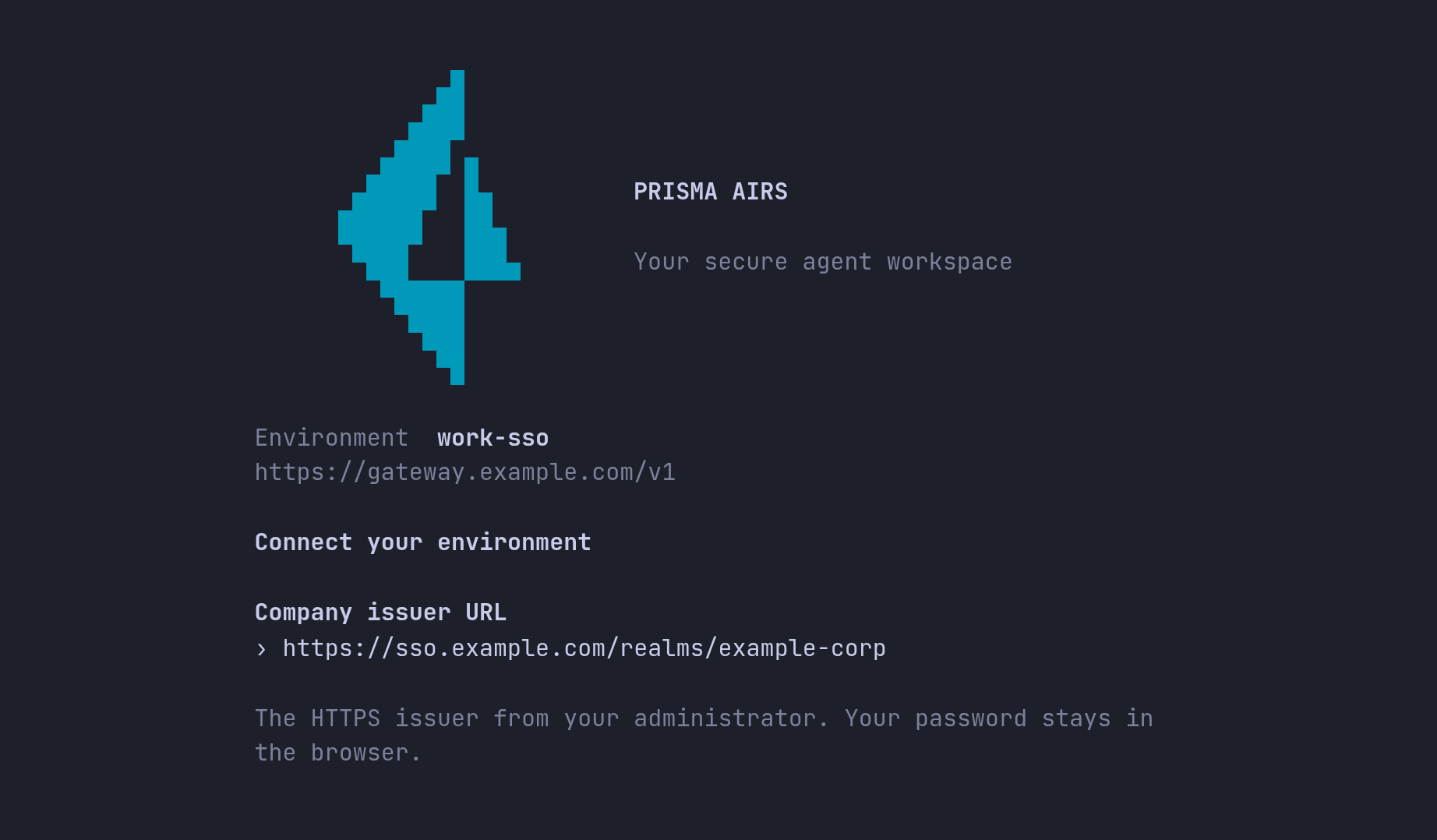

1. Company issuer URL, the realm URL you checked in step 1.
2. Public client ID, for example ai-gateway-agent.

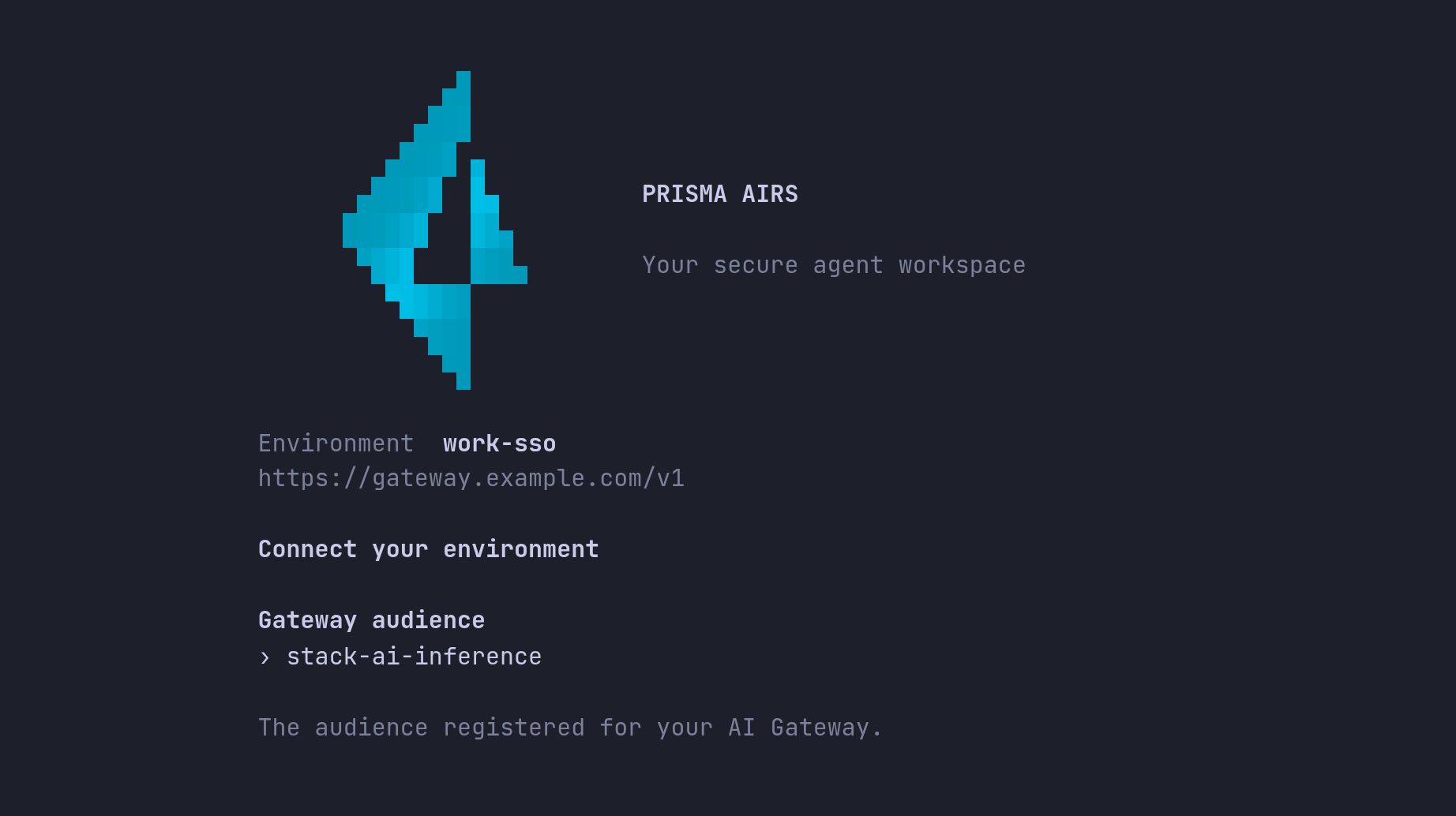

3. Gateway audience, for example stack-ai-inference.

Paste each value and press Enter. Ctrl+U clears the field and Esc cancels.

Each field must be a single line with no spaces. The issuer must also be an HTTPS URL with no query, fragment or trailing slash; otherwise the screen says so before it moves on. AIRS saves these public settings to the environment before signing in, so if you run sign-in again later it offers Continue with saved settings.

4. Sign in in your browser

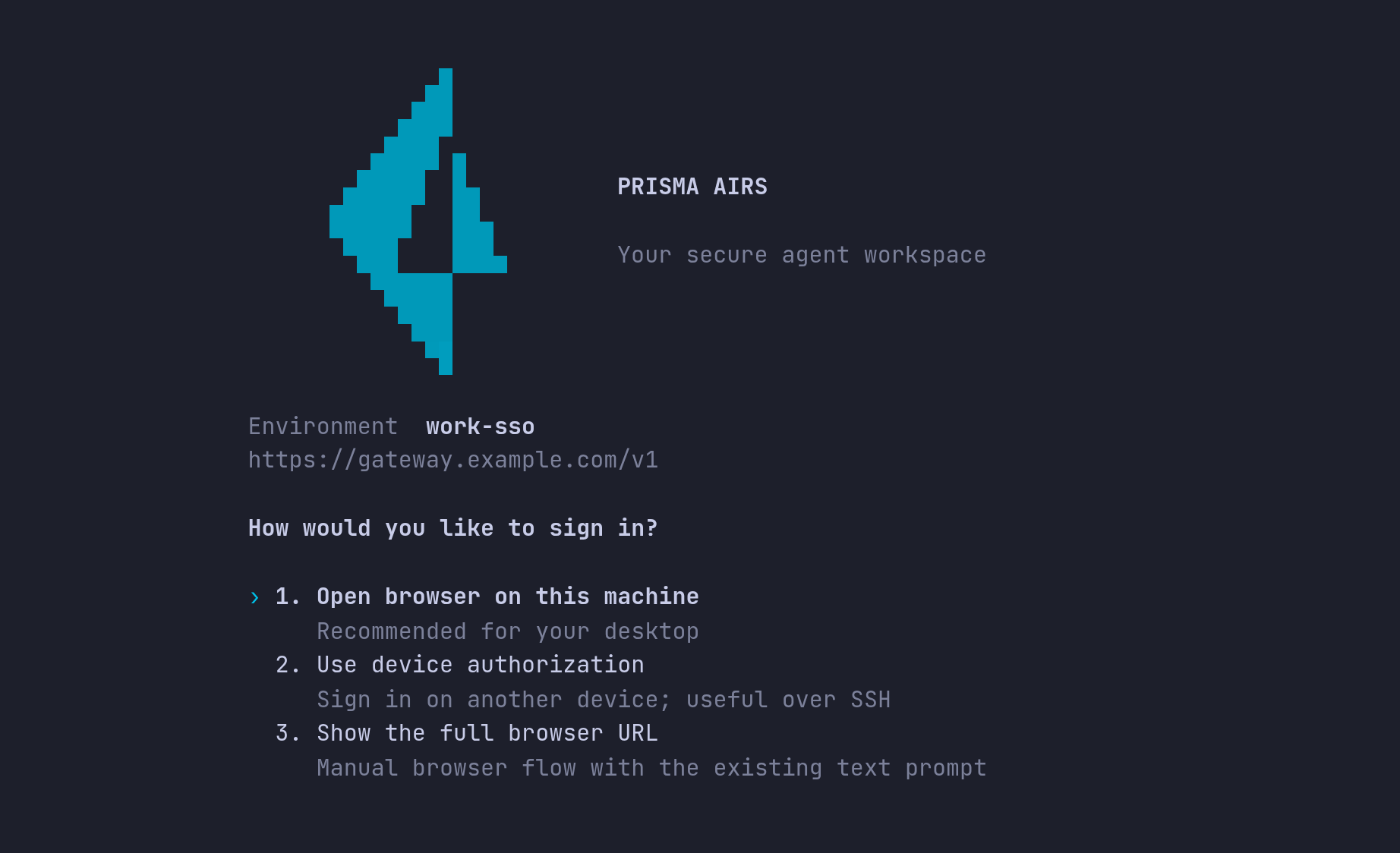

On How would you like to sign in?, choose how to reach the sign-in page.

• Open browser on this machine is the normal choice on a desktop.
• Use device authorization is for SSH and headless machines. See Sign in over SSH.
• Show the full browser URL closes the screen and prints the link for you to open. The browser still has to reach this machine's loopback callback, so this only helps when the browser runs on the same machine.

AIRS now shows its progress, one stage at a time:

Stage	What is happening
Checking credential storage	Confirms the Keychain or keyring can save a credential, before you sign in.
Contacting company sign-in	Reads the issuer's discovery document and signing keys. This is where issuer, PKCE and hostname problems are reported.

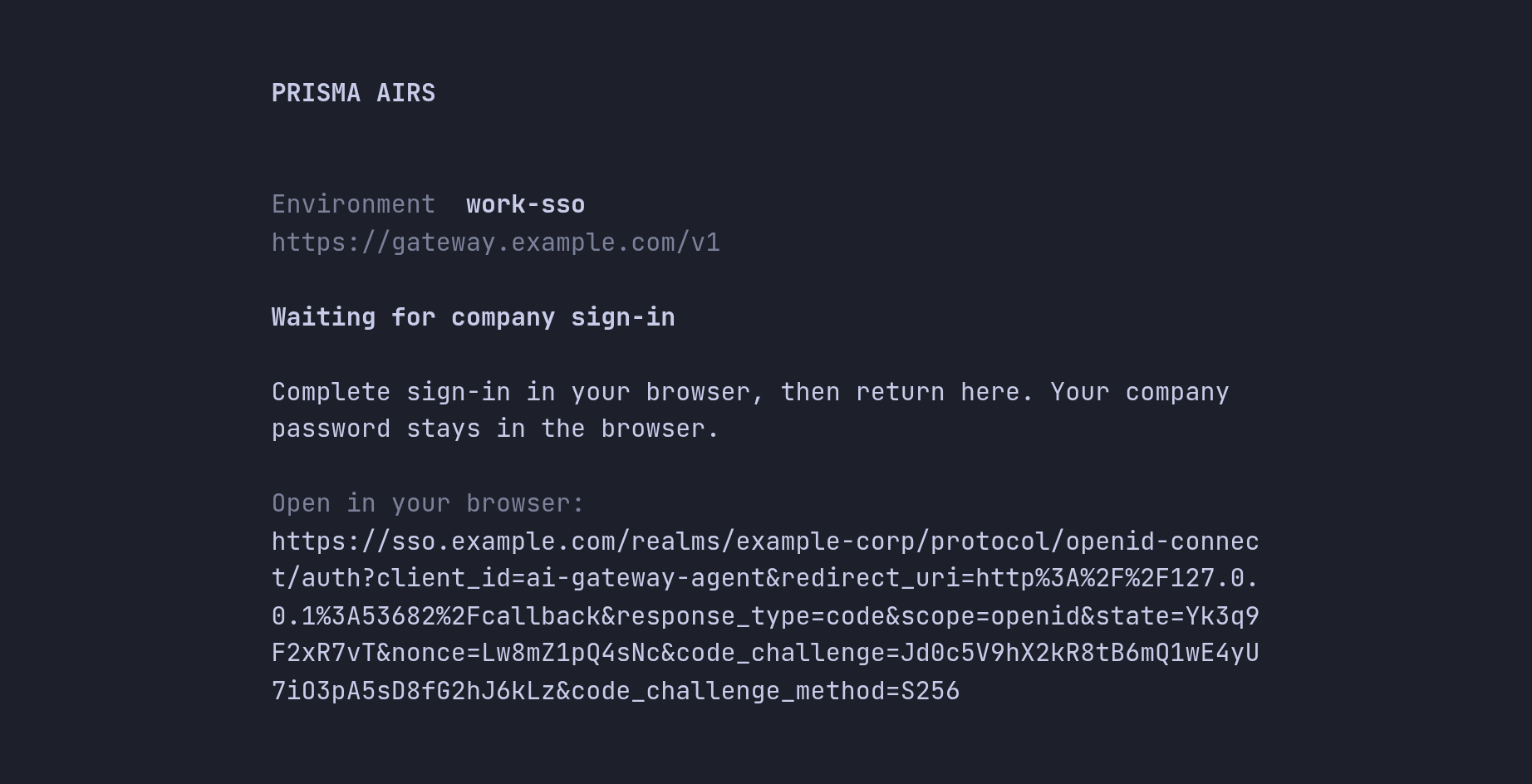

Waiting for company sign-in	The browser is open. Sign in there. The link is also shown in case the browser did not open.
Saving sign-in	The token passed the harness's checks and is being stored.
Credential saved · checking gateway access	One small inference request with your token.

The link shows the request described in How SSO sign-in works: your client ID, scope=openid, a PKCE challenge and a 127.0.0.1 callback on a free port. Sign in on the Keycloak page as the person who should own this environment. If your company signs in with Entra, choose the Entra button there; its label is whatever your administrator named it, such as Microsoft Entra ID. Your password is only ever typed into that page.

When the browser shows You may return to AIRS Harness to finish signing in, switch back to the terminal. That page means only that the harness received Keycloak's reply, which can also be a refusal; the terminal reports the result. An unfinished browser sign-in times out after five minutes.

5. Finish the first-run screens

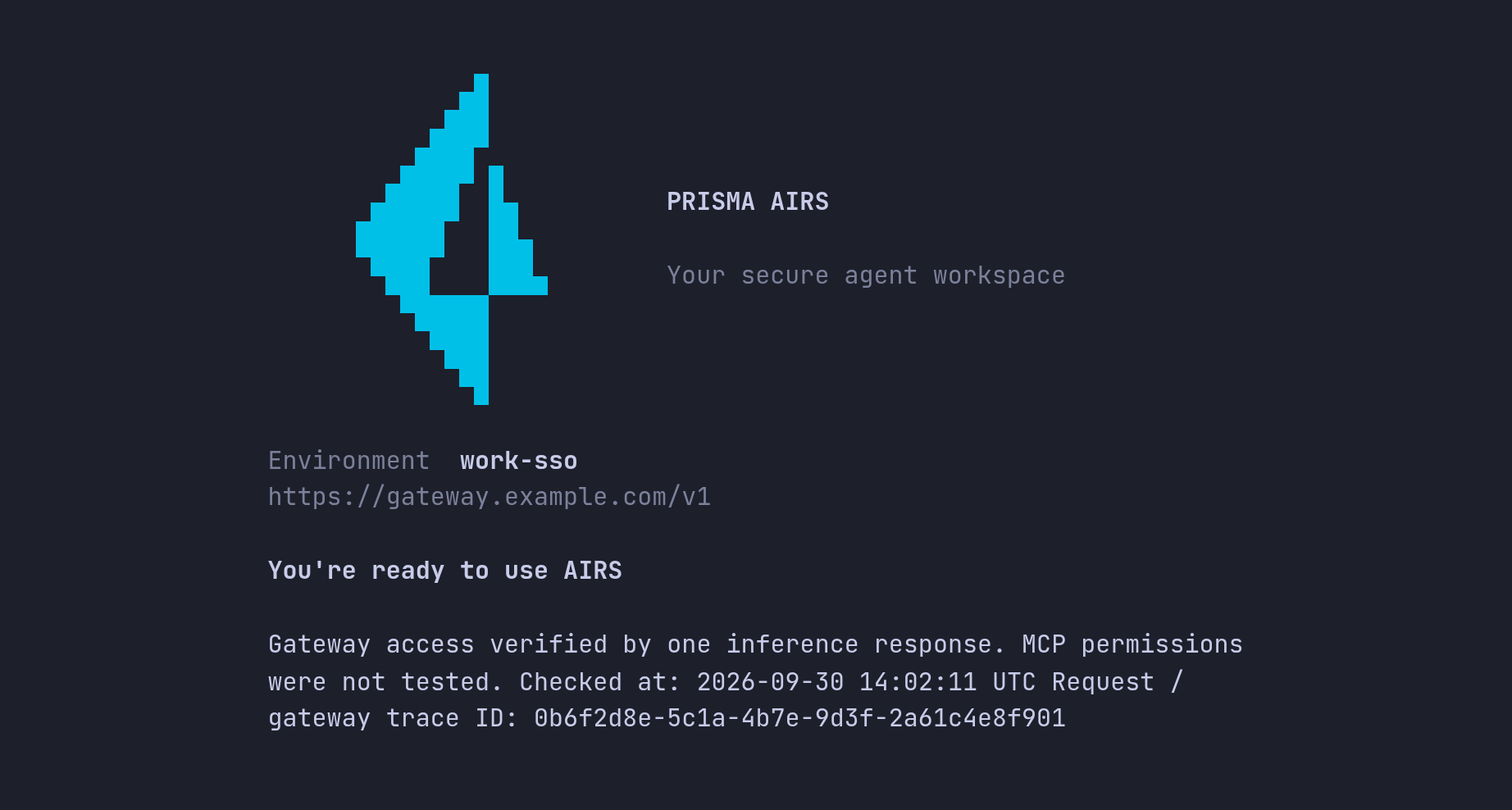

You're ready to use AIRS means the credential was saved and the gateway accepted one real inference request made with your token. The screen shows when the check ran, in UTC, and a trace ID you can look up in the gateway logs.

Continue past the optional red-team judge screen, trust your project directory, and the session opens. The header's identity line reads OIDC · alex, with your Keycloak username, where a key-based environment shows workspace credential.

If the title is Credential saved · gateway access needs attention instead, sign-in worked but the gateway refused the request. Signing in again will not change that. Choose Exit and fix gateway access, then use step 8 to read the reason.

If sign-in itself fails, AIRS shows Sign-in needs your attention with the error, and offers Try sign-in again or Back to sign-in options. Troubleshoot sign-in lists each error.

Set up from the shell instead

Every screen above has a command equivalent, for scripts and repeatable setups:

airs env create work-sso --gateway-url https://gateway.example.com/v1
airs login \
  --issuer-url https://sso.example.com/realms/example-corp \
  --oidc-client-id ai-gateway-agent \
  --audience stack-ai-inference
airs doctor --verify-access

• env create with --gateway-url saves and selects the environment without signing in. Here the URL includes /v1, because it is the inference API root.
• login opens the browser and prints Signed in through <issuer>. Verified subject: <subject>. Credentials stored in the OS store. Add --no-browser to print the URL instead of opening it, or --device-auth for SSH.
• doctor --verify-access is the separate access check from step 8.

Part 2: Validate

Setup ends with one successful request. These checks show why it works, so that when something changes later you know which layer to look at. They either read local state or send at most one small request.

6. Validate the saved identity

airs login status

Expected output:

Prisma AIRS Harness 0.1.3
State: /home/alex/.airs-harness/environments/7a674da4-381b-4d8b-9ec7-8a1fe6b2b190
Gateway: https://gateway.example.com/v1
Authentication: OIDC; saved identity metadata (not freshly authenticated): issuer "https://sso.example.com/realms/example-corp"; subject "3f1c9a2e-5b7d-4e8f-a1c2-9d0e6b4f7a31"; audience "stack-ai-inference"
Credential configuration: Saved; availability and gateway access not checked. Run airs doctor --verify-access to check access.

This is a local read; nothing is sent. Check that:

• Gateway ends in /v1 and is your administrator's gateway.
• Authentication starts with OIDC. Workspace credential means this environment still uses a key.
• issuer and audience are exactly your administrator's values.
• subject is your Keycloak user ID. It is the sub claim in your token, and it is how the gateway knows who you are.

As the last line says, a saved identity is not proof that the token still works. The next two steps check that.

7. Validate the token's claims

The harness has already rejected any token with the wrong signature, issuer, audience or client. The gateway needs more than that. The harness never displays your token, so the way to see exactly what the gateway receives is Keycloak's token preview, which needs Keycloak admin access. An administrator opens your realm, goes to Clients, opens the harness client, chooses the Client scopes tab and then Evaluate, selects your user and opens Generated access token. If you are not a Keycloak administrator, ask yours to run this preview for your account and compare it with the table below.

A token that the reference gateway policy accepts looks like this (values are examples, and standard claims such as exp and iat are omitted):

{
  "iss": "https://sso.example.com/realms/example-corp",
  "aud": "stack-ai-inference",
  "azp": "ai-gateway-agent",
  "sub": "3f1c9a2e-5b7d-4e8f-a1c2-9d0e6b4f7a31",
  "scope": "openid profile email completions.write",
  "portkey_workspace": "agent-production",
  "harness_inference_roles": ["invoke"]
}

Claim	Why it must be there	Checked by
iss	Names the realm that signed the token	Harness and gateway
aud	Says the token is meant for the gateway	Harness and gateway
azp	Says which client asked for the token	Harness and gateway
sub, iat, exp	Who you are and how long the token is valid	Harness and gateway
scope includes completions.write	Permits inference	Gateway
portkey_workspace	Names the gateway workspace the request belongs to	Gateway
harness_inference_roles includes invoke	Says you may invoke models	Gateway

These claim names come from the reference setup in Keycloak inference sign-in. Your gateway's JWT policy is what counts, so if your administrator uses different names, compare against theirs.

Never paste a live token into an online JWT decoder: it is a working credential until it expires. The Keycloak preview is safe because it never issues a token anyone can use.

8. Validate gateway access

Now send one real request:

airs doctor --verify-access

doctor prints one line per check. The gateway_access line, with its time and trace ID, is the one that matters here:

Checking gateway access with one minimal inference request (up to 16 output tokens). This sends only a fixed connectivity message, with no local files or tools. The request asks the provider not to store the response; gateway logging policy still applies.
Prisma AIRS Harness 0.1.3 — doctor
State: /Users/alex/.airs-harness/environments/7a674da4-381b-4d8b-9ec7-8a1fe6b2b190
PASS credential_service: Credential service responded. Access to the saved credential is not verified; choose Verify gateway access.
PASS credential_cleanup: No pending credential cleanup
PASS local_tools: Required local executables found; this does not exercise kernel sandbox support
PASS configuration: https://gateway.example.com/v1
PASS capabilities: Local catalog readable; backend limits still apply
PASS gateway_health: HTTPS/HTTP health response successful; inference and policy not exercised
PASS mcp_configuration: 0 configured server(s); use /mcp and invoke a tool to verify remote authorization
PASS typesafe_judge: Not configured (optional). Set with airs env typesafe set
PASS gateway_access: Gateway access verified by one inference response. MCP permissions were not tested.
Checked at: 2026-09-30 14:02:11 UTC
Request / gateway trace ID: 0b6f2d8e-5c1a-4b7e-9d3f-2a61c4e8f901

This is macOS output; Linux adds a linux_user_namespaces line for its sandbox. The workspace API key guide explains each line. The request is capped at 16 output tokens and carries no conversation, files or tools, but it uses a little quota and appears in the gateway logs. Inside a session, /doctor → Verify gateway access sends the same request.

When the check fails, doctor exits with an error and the gateway_access line names the stage:

gateway_access says	Meaning	What to check
rejected authentication (HTTP 401)	The gateway did not accept the token itself	The gateway's JWT policy (issuer, audience, signing keys) against the claims in step 7
denied permission (HTTP 403)	The token is valid but not allowed	Your workspace membership, and the claims the gateway's own authorization reads
guardrail blocked this request (HTTP 446, policy denial)	A guardrail stopped the request	The trace in the gateway logs names the guardrail. With a JWT guardrail like the reference setup, a missing completions.write, wrong portkey_workspace or missing invoke role is reported here.
rejected the probe (HTTP 404) or another status	The route is wrong	The workspace's saved config and model route

Give your administrator the trace ID, never the token.

9. Send a first request

Open the session and ask for something short:

airs

When the reply streams back, find the request in AI Security → AI Gateway → Observability → Logs in Strata Cloud Manager, as in the workspace API key guide. With the reference Keycloak mappers, which put your email in the request metadata, the row's User is your SSO identity rather than a key's owner. That is the visible difference SSO makes.

Troubleshoot sign-in

These errors stop sign-in before any credential is saved. The public settings you entered are kept, so you only change the one that is wrong.

Error	Cause	Fix
issuer discovery unavailable	The harness cannot reach the realm	Check the URL and network path with the curl in step 1.
issuer discovery rejected	The URL reaches a server but not a realm, usually a wrong realm name or path	Use the realm URL your administrator gave you, checked with step 1.
invalid issuer metadata	The URL is not a Keycloak realm, for example a login.microsoftonline.com URL	Use the Keycloak realm URL. See Entra.
discovery issuer mismatch	The URL you entered differs from the realm's issuer	Use the exact issuer from step 1, without a trailing slash.
issuer must support PKCE S256	The realm does not offer S256	Administrator enables PKCE S256 for the client.
identity endpoint must share the issuer origin	Discovery advertises a different or internal host	Administrator fixes Keycloak's public hostname settings.
access JWT verification failed	Usually aud does not contain your audience; also a wrong issuer or an expired token	Administrator adds the audience mapper to the client's default scopes.
unsupported access JWT algorithm	The realm signs access tokens with something other than RS256	Administrator sets the client's access token signature algorithm to RS256.
access JWT authorized party does not match the configured client	The client ID you entered did not issue the token	Re-enter the client ID exactly.
issuer did not return a refresh token	The client is not allowed refresh tokens	Administrator allows refresh tokens for the client.
… seconds ahead of this machine's clock or … seconds remaining	Your clock and Keycloak's disagree, or the token lifetime is very short	Synchronize the system clock and sign in again.
issuer rejected login	Keycloak refused the sign-in, for example you declined consent or may not use the client	Sign in again as the right user, or ask your administrator about the client's access rules.
browser login timed out	Five minutes passed without a valid reply, including when the browser showed Invalid login callback.	Sign in again. If the browser keeps showing Invalid login callback., either a stale browser tab from an earlier attempt returned, or the realm does not send the iss parameter on the redirect: the administrator turns Exclude Issuer From Authentication Response off for the client.
issuer does not support device login	Device authorization is not enabled	Use a browser, or ask for device authorization on the client.
Keycloak shows an invalid redirect URI	The client does not allow the loopback callback	Administrator registers http://127.0.0.1/callback on the client.

Inside the guided flow, Try sign-in again retries at once. To change a setting, choose Back to sign-in options, then Sign in with company SSO, then Review or change public settings. From the shell, airs login opens the same screens. The environment and its history are kept.

Sign in over SSH

When the harness runs on a remote host, its loopback callback cannot receive your laptop browser's redirect. Use device authorization instead, which needs no callback and no port forward:

airs login --device-auth \
  --issuer-url https://sso.example.com/realms/example-corp \
  --oidc-client-id ai-gateway-agent \
  --audience stack-ai-inference

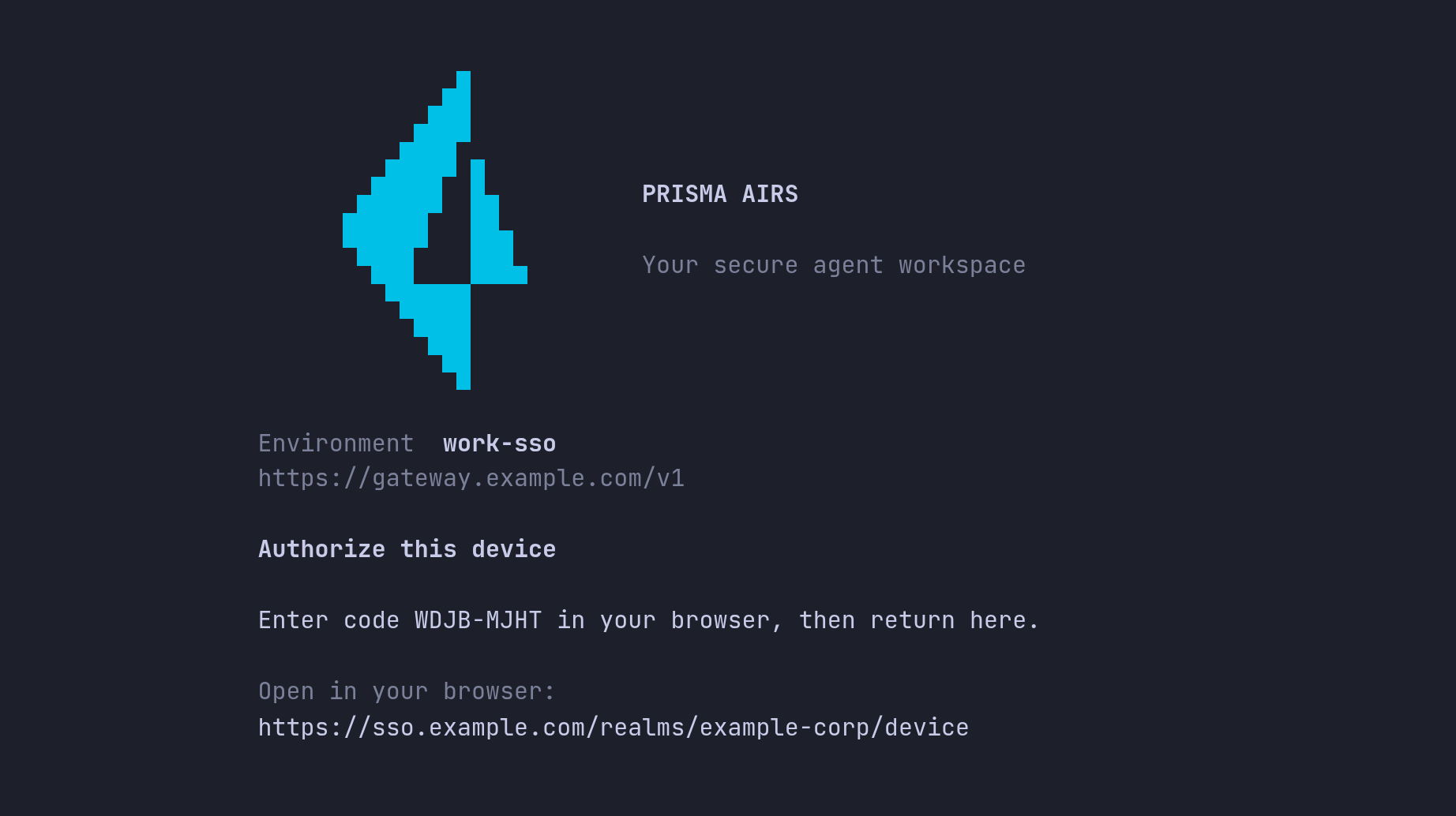

The command prints Open <link> and enter code <code>. In the guided screens the same flow is Use device authorization, which shows:

Open the link on any device with a browser, enter the code and sign in there. The SSH session polls Keycloak until you finish, then saves the credential. If the code expires, run the command again.

Your administrator must enable device authorization on the harness client. The realm advertising a device endpoint (step 1) does not mean this client may use it.

Signing in with Microsoft Entra ID

Entra is not a separate path through the harness. Your administrator configures Entra as an identity provider inside Keycloak, and the harness keeps using the Keycloak issuer, client ID and audience from the table above. On the Keycloak page you choose the Entra button, complete Entra sign-in, MFA and any Conditional Access, and Keycloak issues the token.

Two consequences matter when something goes wrong:

• The issuer is always Keycloak. Do not enter a login.microsoftonline.com URL as the issuer; the harness rejects it with invalid issuer metadata. Even if it did not, the harness requests only the openid scope and requires the gateway audience in the access token, and an access token Entra issues for that request is meant for Microsoft Graph, not your gateway.
• Access is decided in Keycloak. Entra supplies your identity and app role assignments, and Keycloak maps them to the group that grants invoke. The mapping is refreshed only when you next sign in through Entra (with the reference setup's forced synchronization). While Keycloak still has a browser session for you, signing in again with /signin reuses it and does not ask Entra. After your Entra assignment changes, sign out of Keycloak in the browser (or wait for its session to end), then sign in again. Removing an assignment does not end access you already have until then.

The administrator procedure is in Microsoft Entra ID through Keycloak.

Stay signed in, switch and sign out

The harness renews the access token by itself, using the refresh token in your credential store. When Keycloak ends your session, for example at the realm's maximum session length, AIRS asks you to sign in again.

Task	Command
Sign in again inside a session, keeping the conversation	/signin, then Sign in
Restore sign-in when startup or resume stops on a rejected refresh	airs login --restore-session
Switch an environment between a workspace key and SSO	airs env auth
Sign out and revoke the refresh token at Keycloak	airs logout
Unregister the environment (history stays on disk)	airs env remove work-sso

Restoring a session must be done as the same person. env auth keeps the environment's name, conversations and MCP server settings, replaces only the inference credential, and asks for confirmation first. It stops open sessions in that environment; resume them with airs resume. If the new credential is a different person, sign in to MCP connections again as that person.

logout revokes the refresh token at Keycloak and stops MCP use in the environment until you sign in again. It keeps the tokens of MCP connections added with /mcp, which work again after you sign in; sign those out in /mcp. Company sign-ins for MCP servers set up with airs setup-mcp are signed out and revoked too. An access token already issued stays valid until it expires, within minutes with the reference 15-minute lifetime. If Keycloak cannot be reached, the local sign-out still happens and the command says revocation could not be confirmed. env remove does not sign out, so run logout first when you retire an environment.

Commands in this guide

Command	What it does	Changes anything?	Sends a request?
curl …/.well-known/openid-configuration	Reads the realm's public discovery document	No	To Keycloak only
airs env create NAME	Guided setup: name, gateway URL, SSO settings, browser sign-in	Creates the environment and saves the credential	Discovery, sign-in and one access check
airs login --issuer-url … --oidc-client-id … --audience …	Browser sign-in without the guided screens	Saves the settings and credential	Discovery and sign-in
airs login --device-auth …	The same, with a device code for SSH	Saves the settings and credential	Discovery and sign-in
airs login status	Issuer, subject and audience of the saved identity	No	No
airs doctor --verify-access	Local checks plus one inference request	No	Yes, up to 16 tokens
airs login --restore-session	Signs in again as the same person without stopping open sessions	Refreshes the credential	Sign-in
airs env auth	Switches between SSO and a key, or changes the SSO user	Replaces the credential	Sign-in and one access check
airs logout	Signs out and revokes the refresh token	Deletes the credential	Revocation to Keycloak

What to do next

• Connect a remote tool server. SSO for inference does not sign in MCP connections; each has its own OAuth sign-in. Continue with MCP servers with OAuth.
• Set up the identity provider as an administrator, with Keycloak and Entra.
• Keep a key-based environment alongside SSO with Environments.
